二合一驱动 R60X2
二合一驱动 R60X2
产品介绍

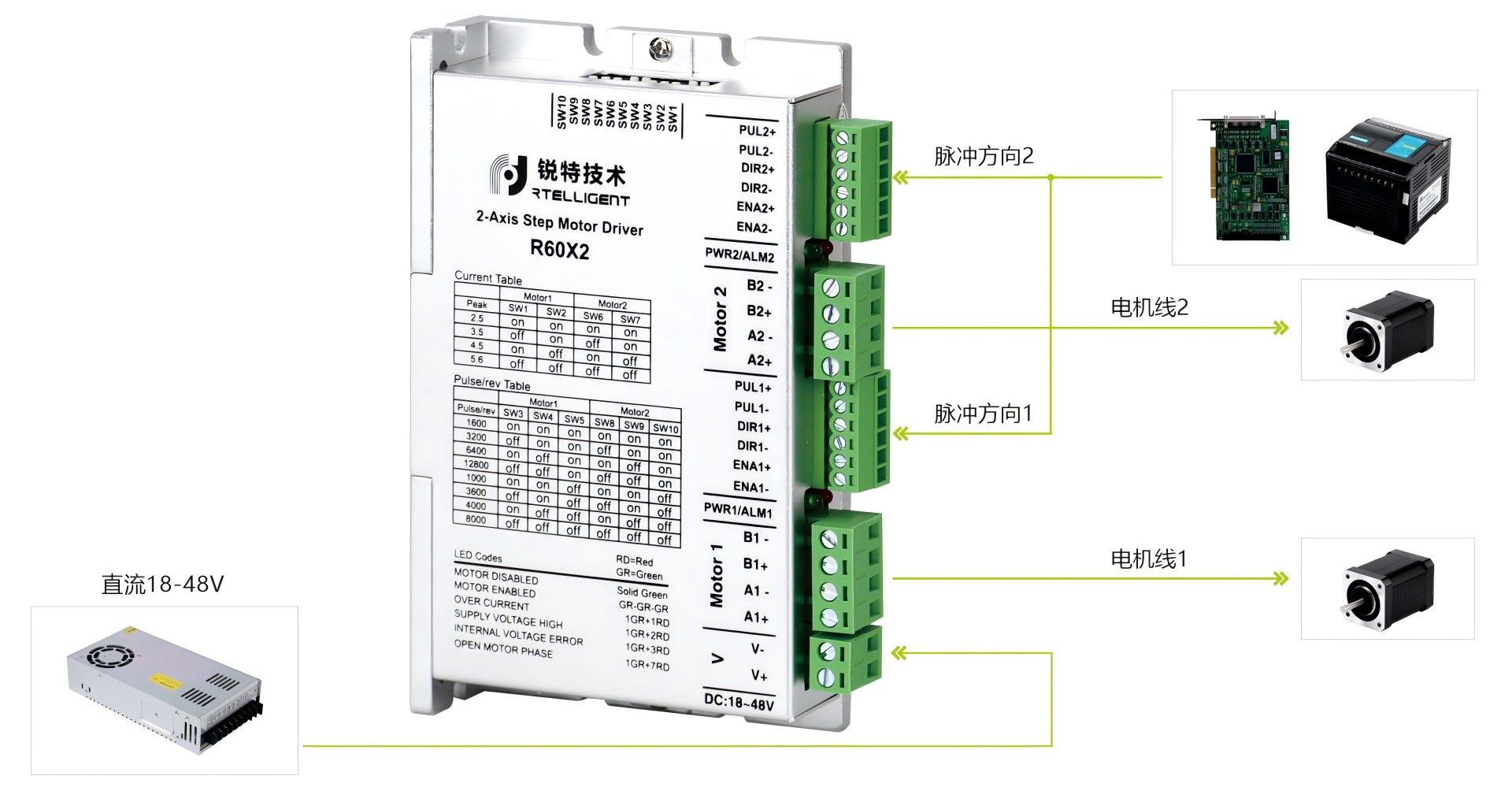

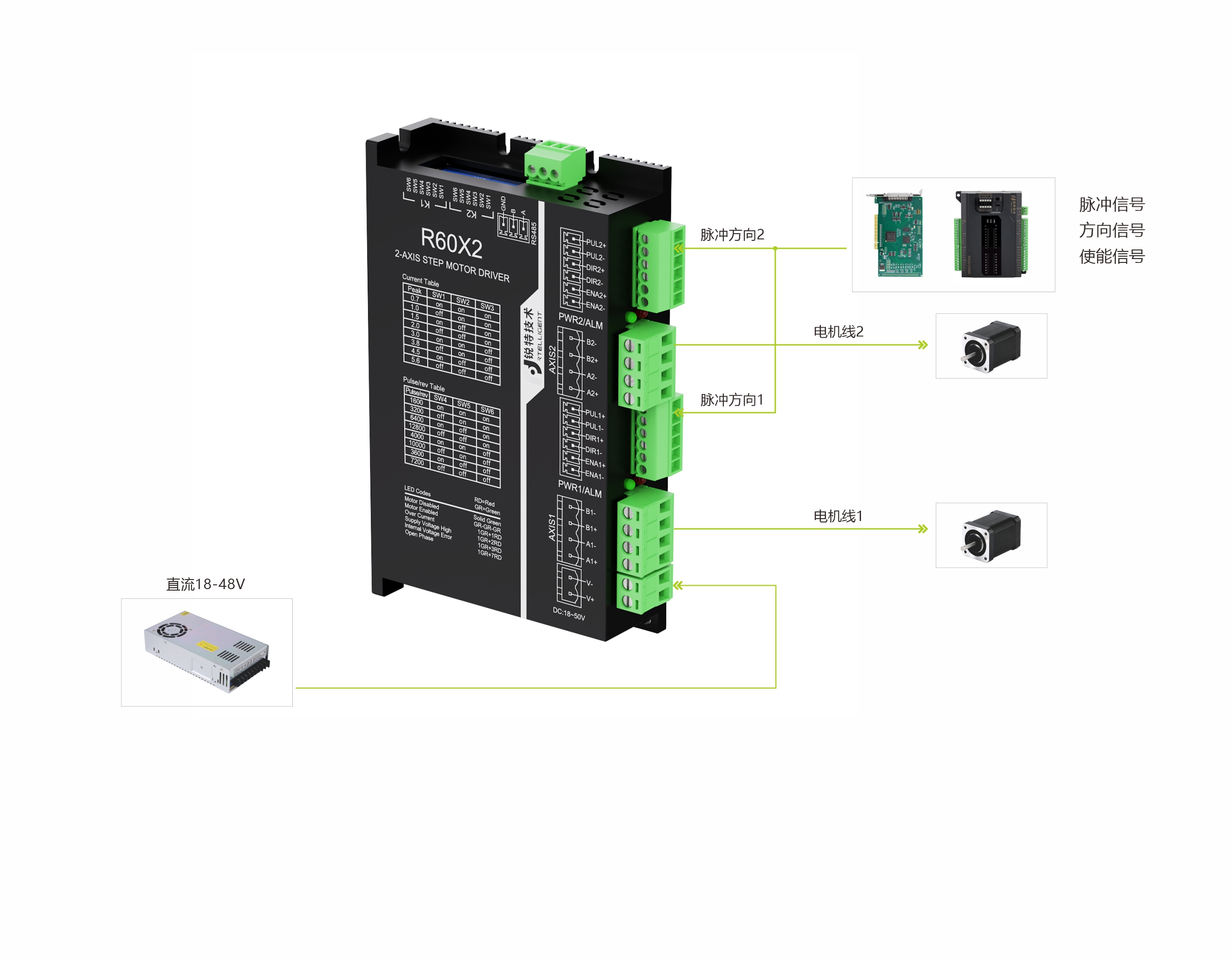

驱动器示意图

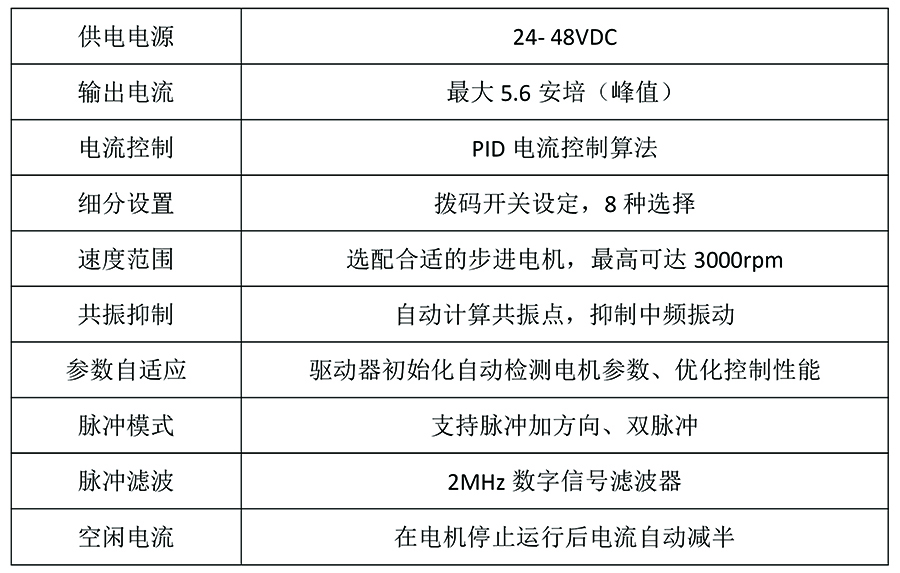

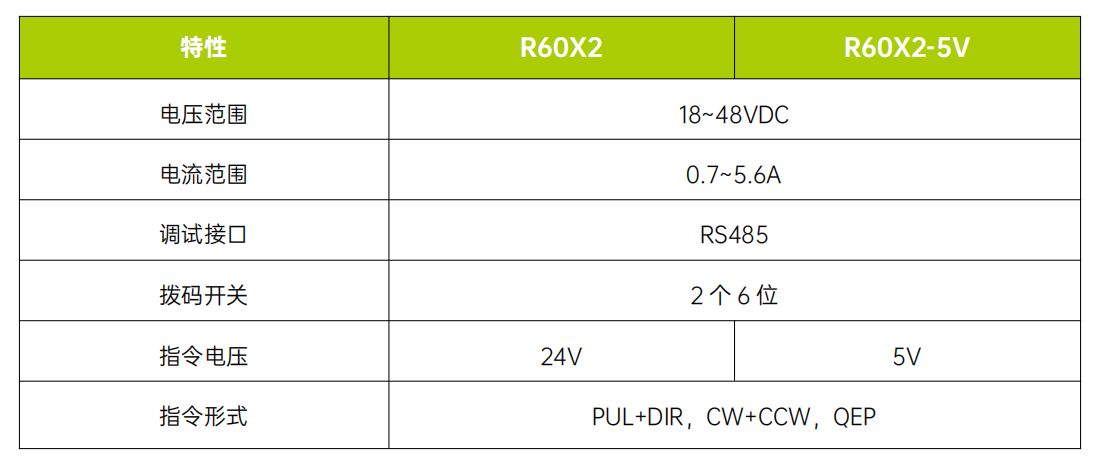

产品特征
工作电流设定
|
电机1 |
电机2 |
|
|||
|
输出电流峰值 |
SW1 |
SW2 |
SW6 |
SW7 |
备注 |
|
2.5A |
on |
on |
on |
on |
可定制其它电流值 |
|
3.5A |
off |
on |
off |
on |
|
|
4.5A |
on |
off |
on |
off |
|
|
5.6A |
off |
off |
off |
off |
|
细分档位设定
|
电机1 |
电机2 |
|
||||||
|
脉冲/圈 |
SW3 |
SW4 |
SW5 |
SW8 |
SW9 |
SW10 |
备注 |
|
|
1600 |
on |
on |
on |
on |
on |
on |
可定制其它细分值 | |
|
3200 |
off |
on |
on |
off |
on |
on |
||
|
6400 |
on |
off |
on |
on |
off |
on |
||
|
12800 |
off |
off |
on |
off |
off |
on |
||
|
1000 |
on |
on |
off |
on |
on |
off |
||
|
3600 |
off |
on |
off |
off |
on |
off |
||
|
4000 |
on |
off |
off |
on |
off |
off |
||
|
8000 |
off |
off |
off |
off |
off |
off |
||
-
深圳锐特R60-X2步进驱动器使用手册 -

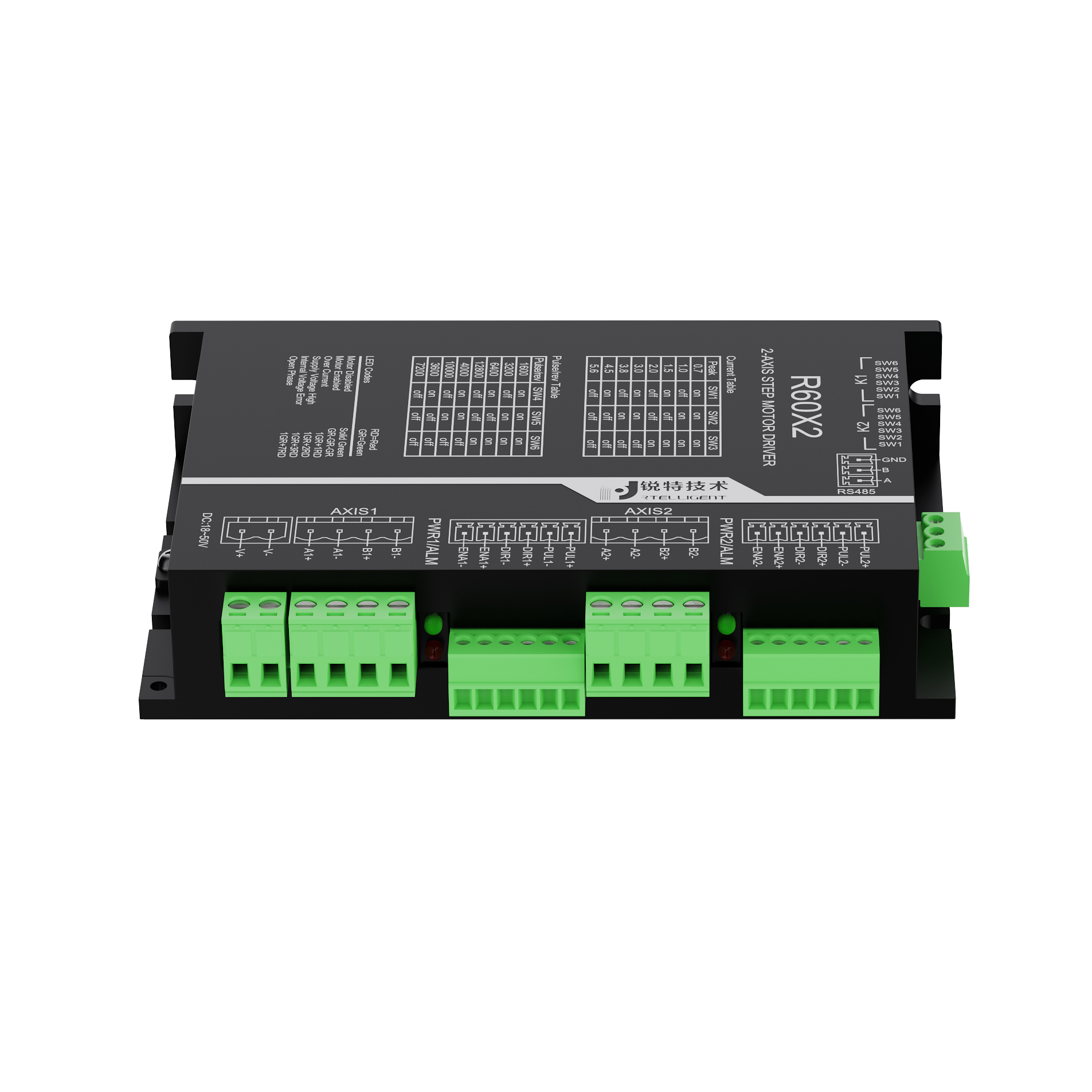

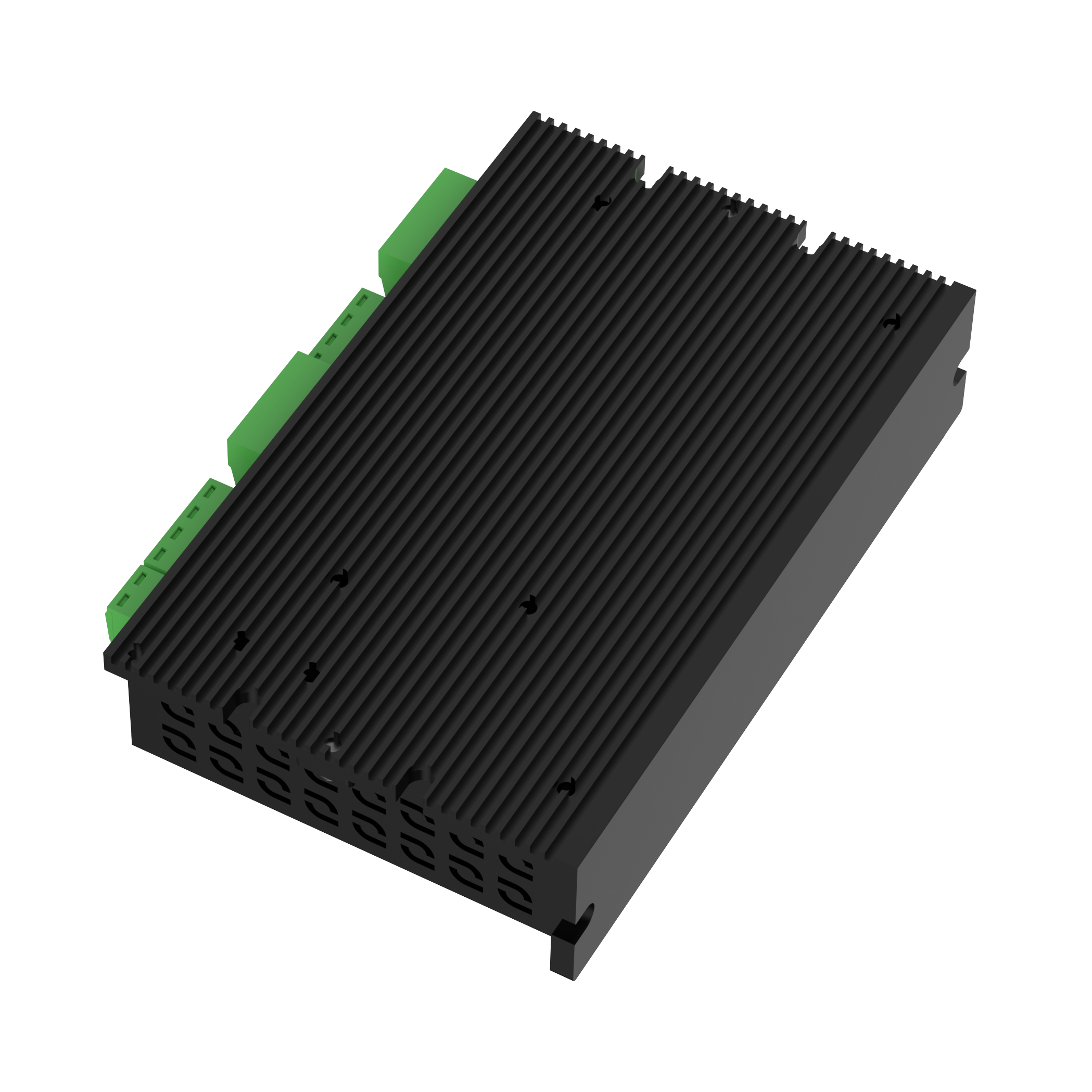

R60X2_3D
