三相开环步进驱动器 3R130
三相开环步进驱动器 3R130
产品介绍

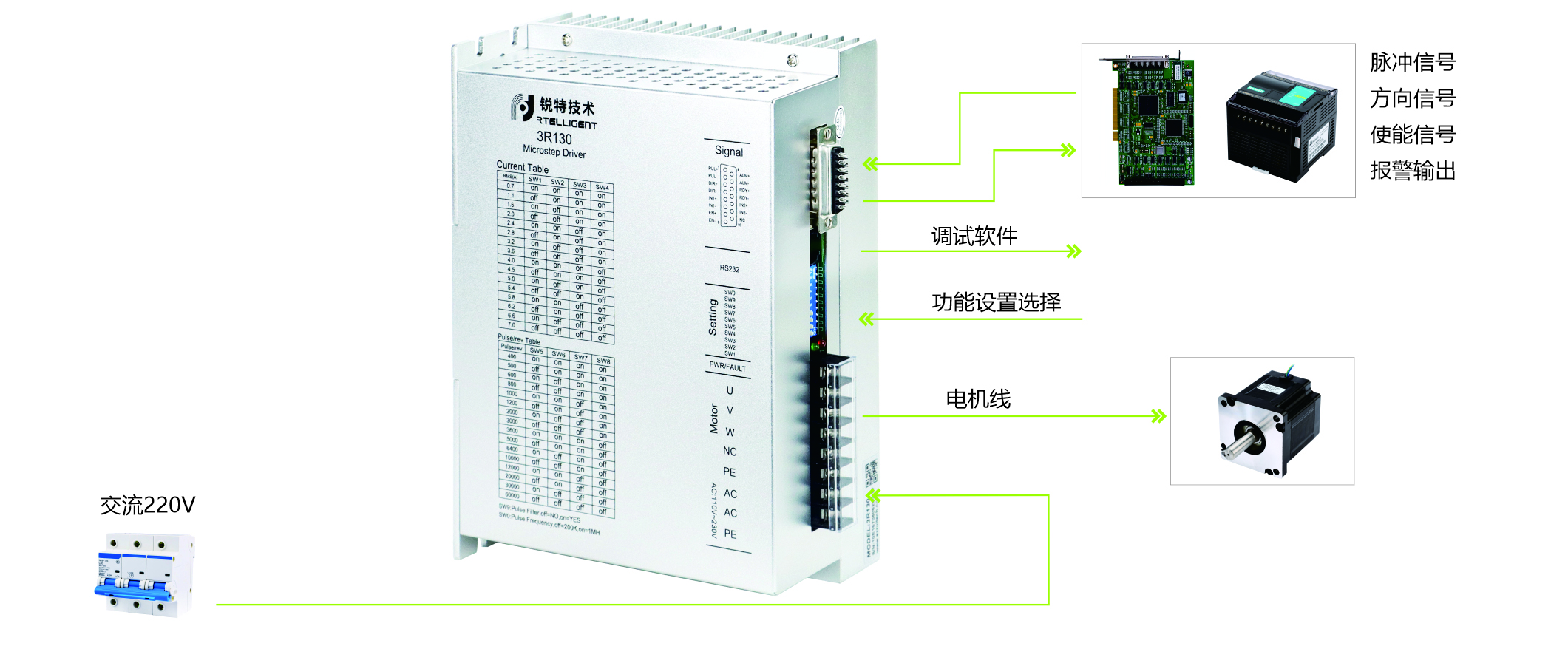

驱动器示意图

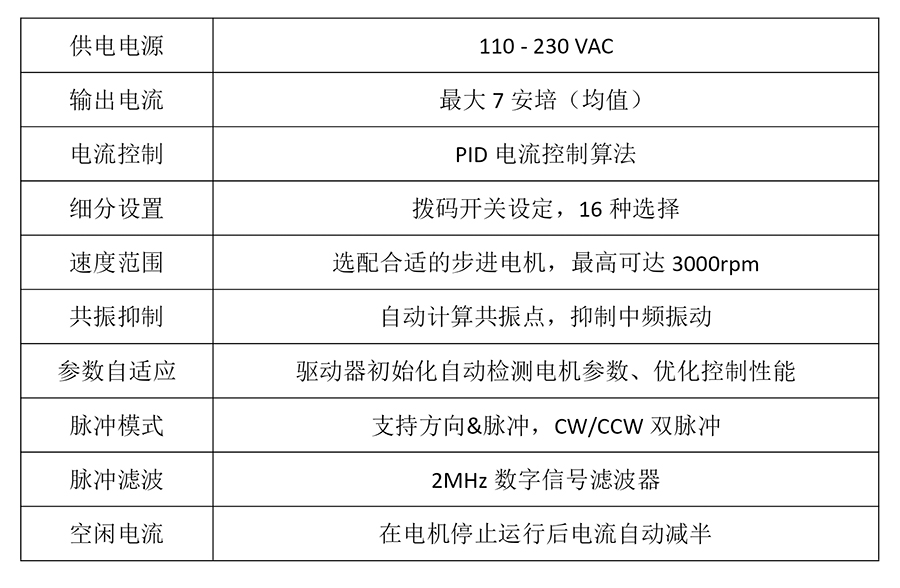

产品特征
工作电流设定
|
RMS(A) |
SW1 |
SW2 |
SW3 |
SW4 |
备注 |
|
0.7A |
on |
on |
on |
on |
可定制其他 |
|
1.1A |
off |
on |
on |
on |
|
|
1.6A |
on |
off |
on |
on |
|
|
2.0A |
off |
off |
on |
on |
|
|
2.4A |
on |
on |
off |
on |
|
|
2.8A |
off |
on |
off |
on |
|
|
3.2A |
on |
off |
off |
on |
|
|
3.6A |
off |
off |
off |
on |
|
|
4.0A |
on |
on |
on |
off |
|
|
4.5A |
off |
on |
on |
off |
|
|
5.0A |
on |
off |
on |
off |
|
|
5.4A |
off |
off |
on |
off |
|
|
5.8A |
on |
on |
off |
off |
|
|
6.2A |
off |
on |
off |
off |
|
|
6.6A |
on |
off |
off |
off |
|
|
7.0A |
off |
off |
off |
off |
细分档位设定
|
脉冲/圈 |
SW5 |
SW6 |
SW7 |
SW8 |
备注 |
|
400 |
on |
on |
on |
on |
可定制其他 |
|
500 |
off |
on |
on |
on |
|
|
600 |
on |
off |
on |
on |
|
|
800 |
off |
off |
on |
on |
|
|
1000 |
on |
on |
off |
on |
|
|
1200 |
off |
on |
off |
on |
|
|
2000 |
on |
off |
off |
on |
|
|
3000 |
off |
off |
off |
on |
|
|
4000 |
on |
on |
on |
off |
|
|
5000 |
off |
on |
on |
off |
|
|
6000 |
on |
off |
on |
off |
|
|
10000 |
off |
off |
on |
off |
|
|
12000 |
on |
on |
off |
off |
|
|
20000 |
off |
on |
off |
off |
|
|
30000 |
on |
off |
off |
off |
|
|
60000 |
off |
off |
off |
off |
-
深圳锐特3R130步进驱动器使用手册
