两相开环步进驱动器 R60
两相开环步进驱动器 R60
产品介绍

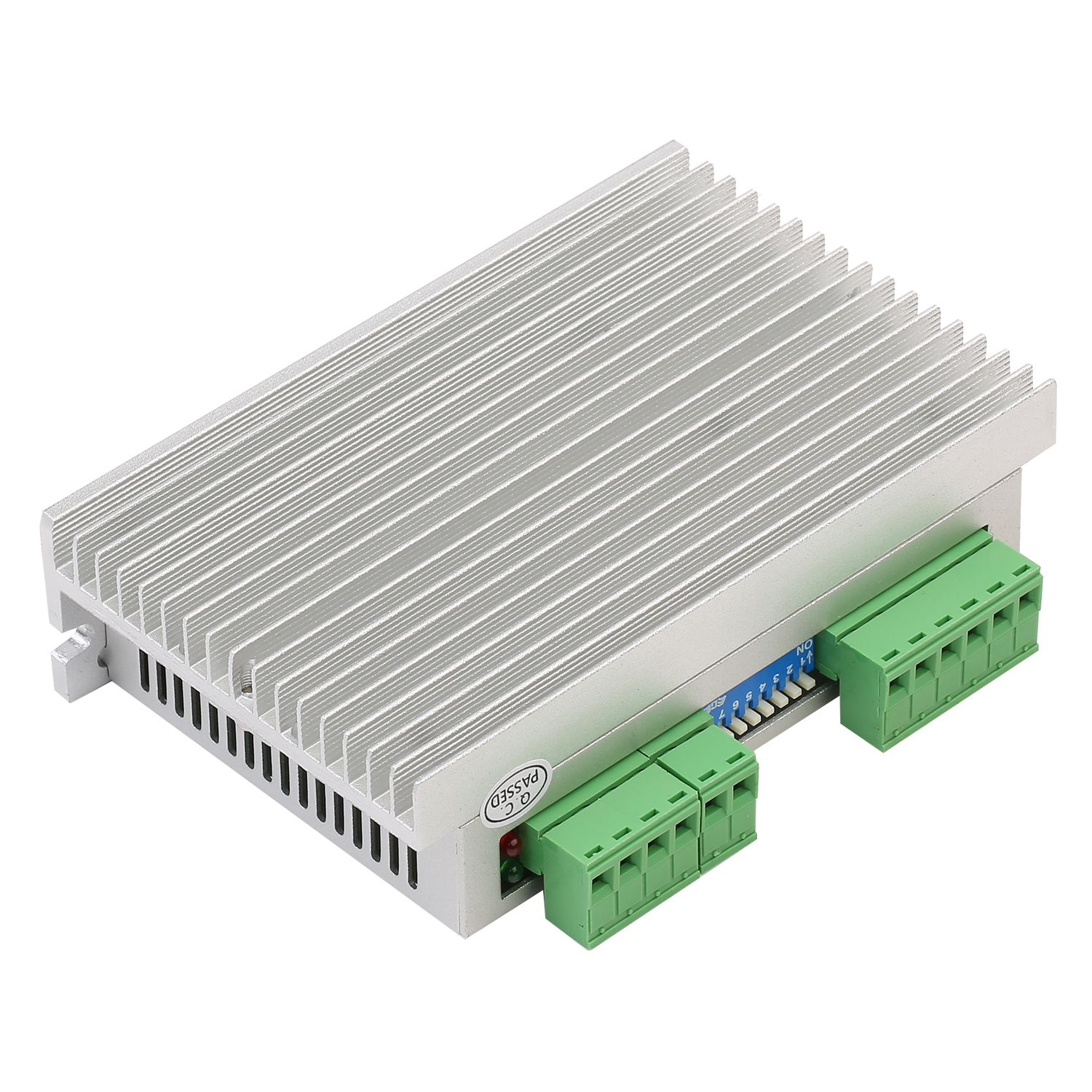

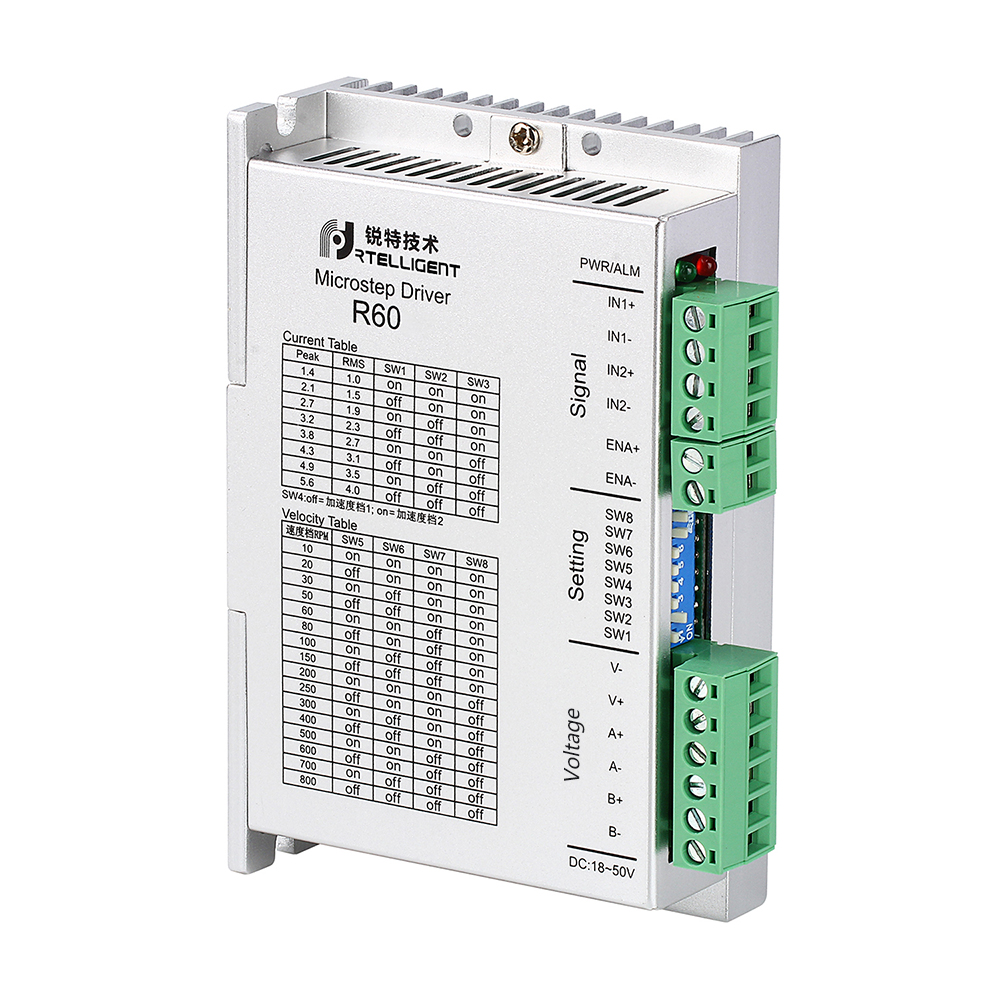

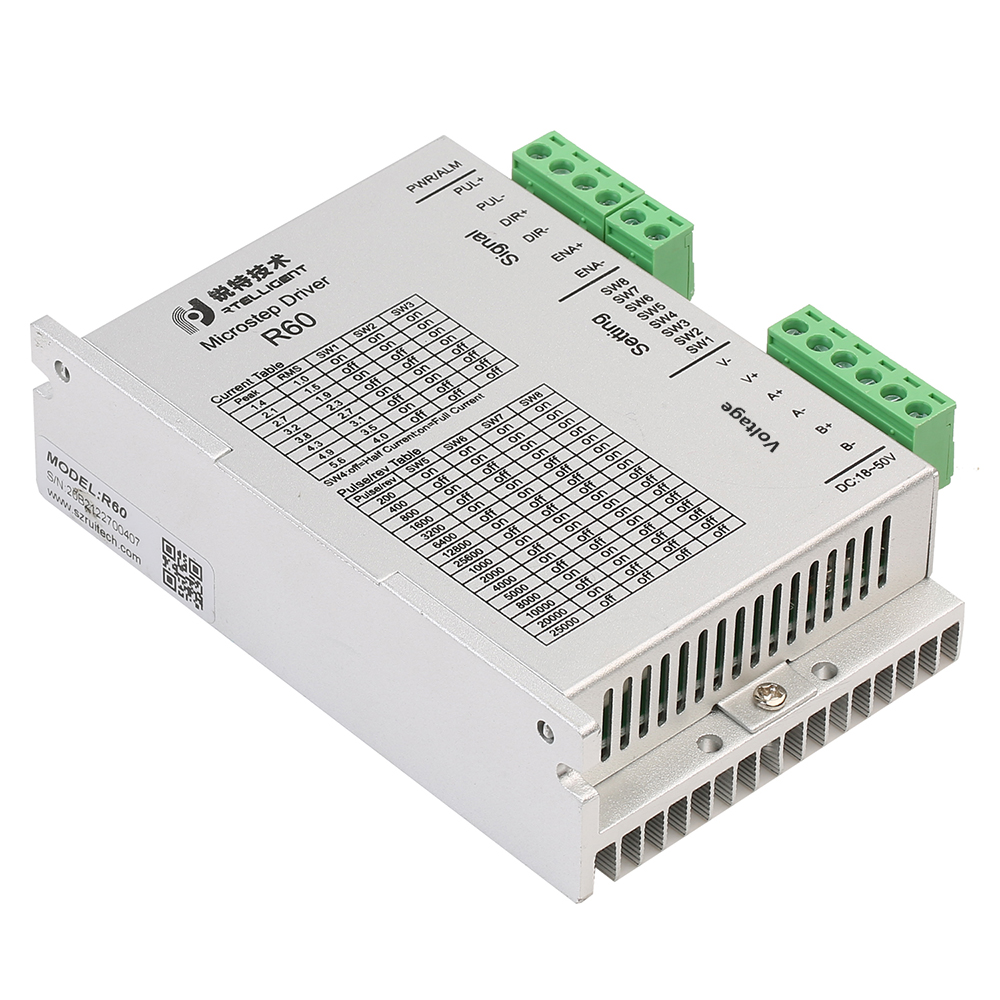

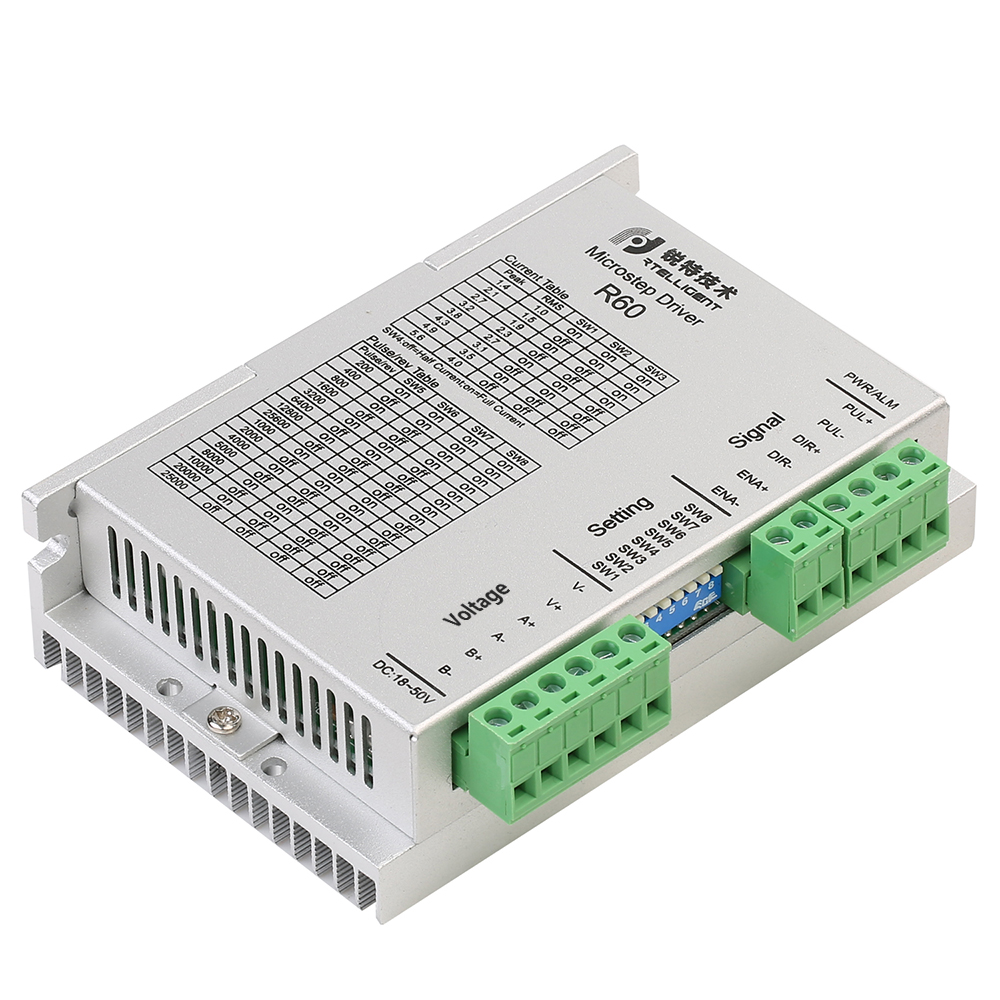

驱动器示意图

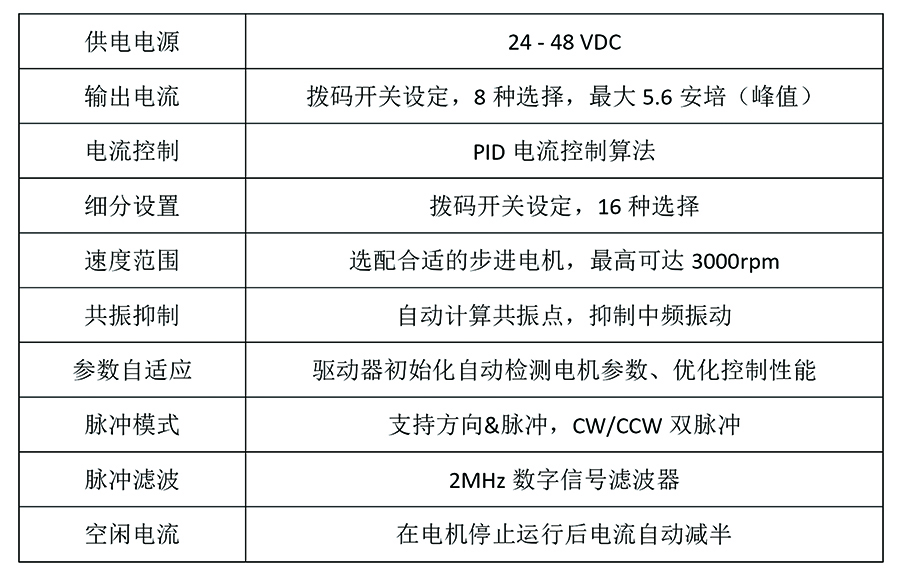

产品特征
工作电流设定
|
输出电流峰值 |
输出电流有效值 |
SW1 |
SW2 |
SW3 |
备注 |
|
1.4A |
1.0A |
on |
on |
on |
可定制其它电流值 |
|
2.1A |
1.5A |
off |
on |
on |
|
|
2.7A |
1.9A |
on |
off |
on |
|
|
3.2A |
2.3A |
off |
off |
on |
|
|
3.8A |
2.7A |
on |
on |
off |
|
|
4.3A |
3.1A |
off |
on |
off |
|
|
4.9A |
3.5A |
on |
off |
off |
|
|
5.6A |
4.0A |
off |
off |
off |
细分档位设定
|
脉冲/圈 |
SW5 |
SW6 |
SW7 |
SW8 |
备注 |
|
200 |
on |
on |
on |
on |
可定制其它细分数 |
|
400 |
off |
on |
on |
on |
|
|
800 |
on |
off |
on |
on |
|
|
1600 |
off |
off |
on |
on |
|
|
3200 |
on |
on |
off |
on |
|
|
6400 |
off |
on |
off |
on |
|
|
12800 |
on |
off |
off |
on |
|
|
25600 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
Off |
|
|
25000 |
off |
off |
off |
off |
-
深圳锐特R60步进驱动器使用手册 -
R60_3D
