两相闭环步进驱动器 T86
两相闭环步进驱动器 T86

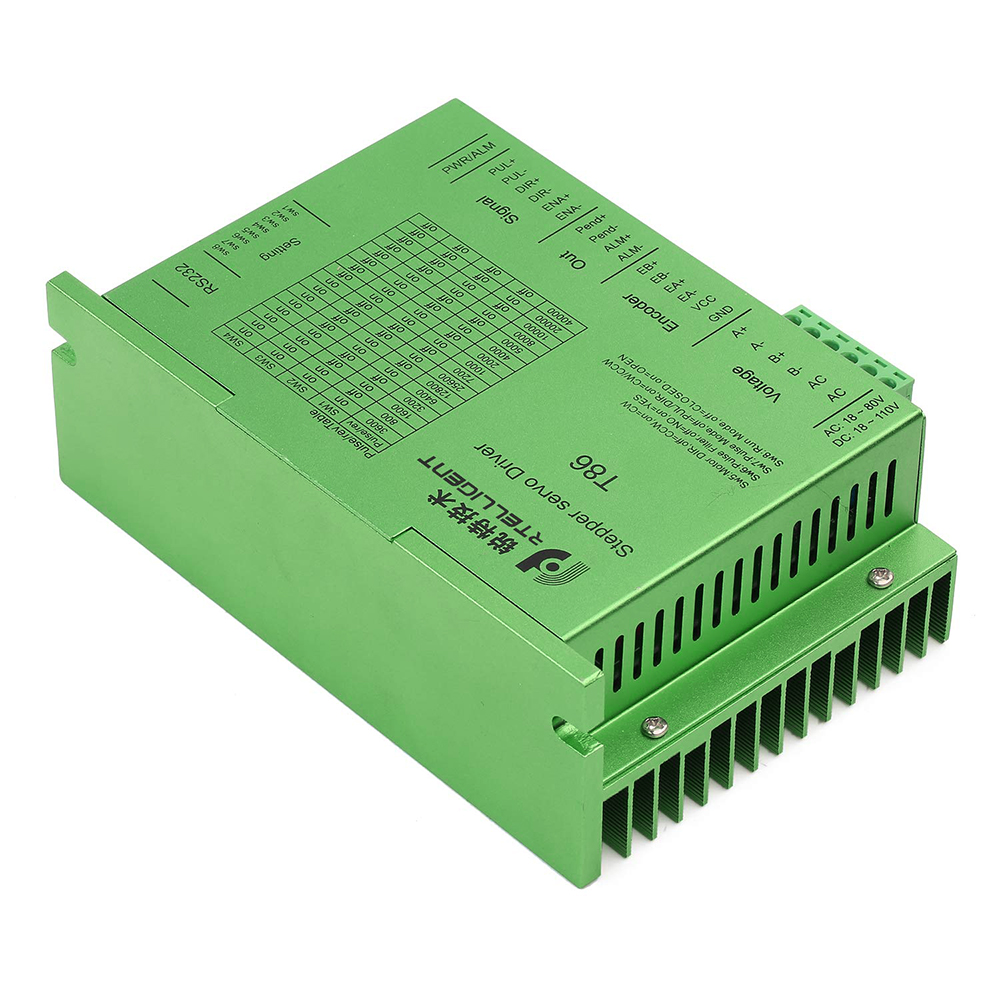

产品介绍

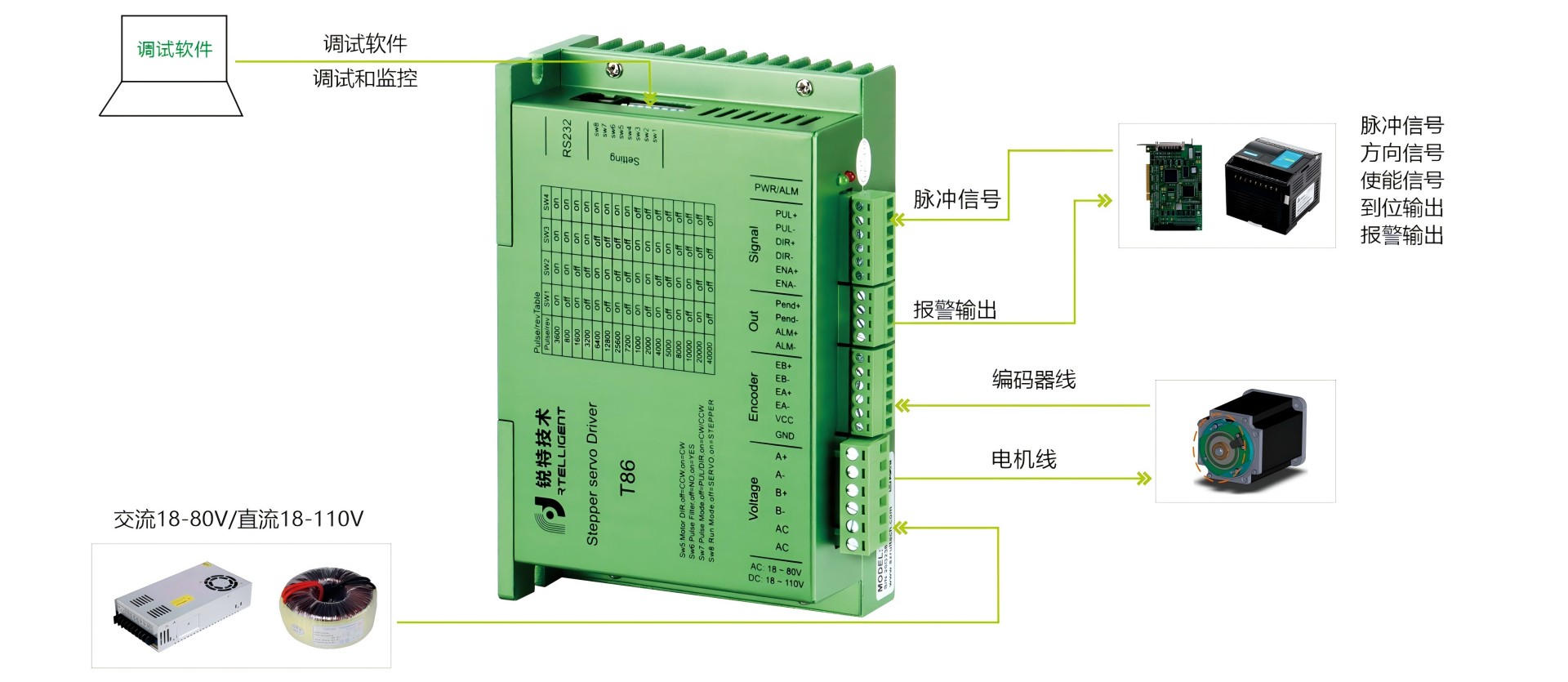

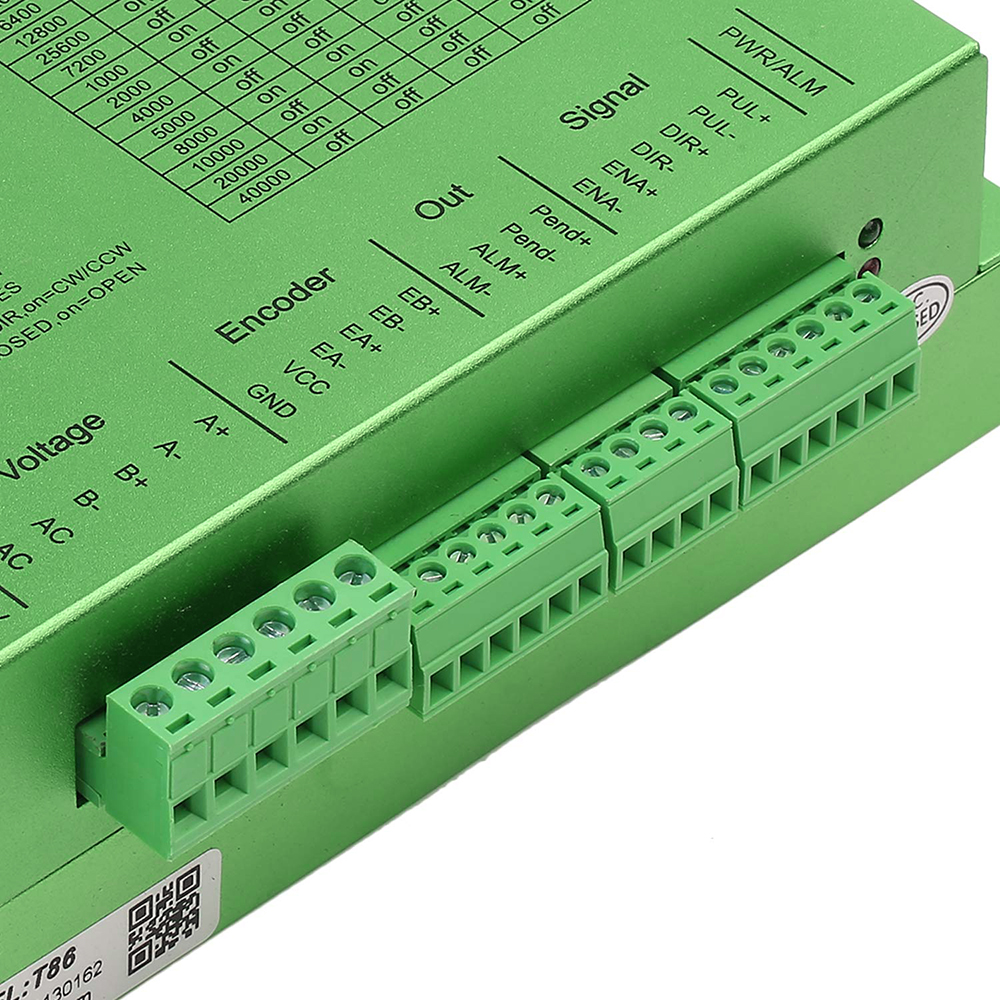

驱动器示意图

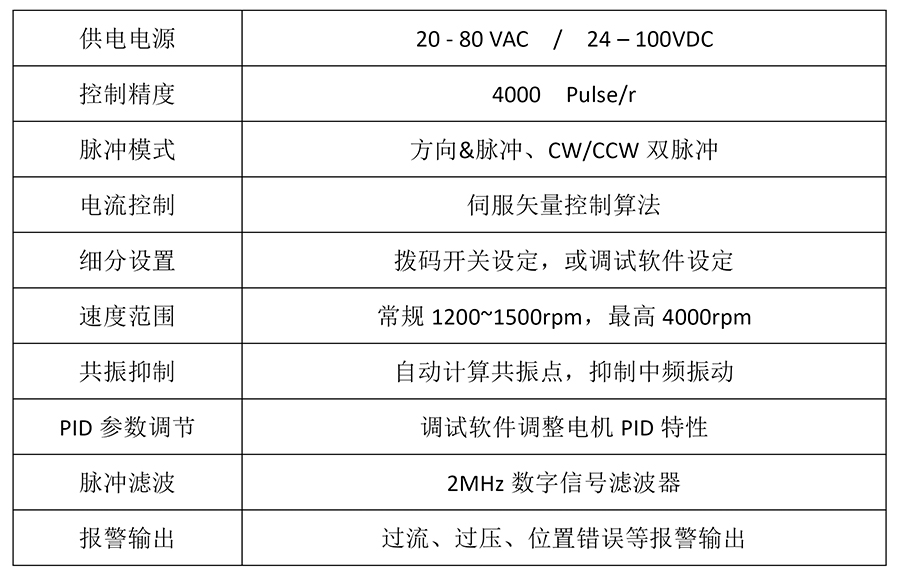

产品特征
脉冲模式

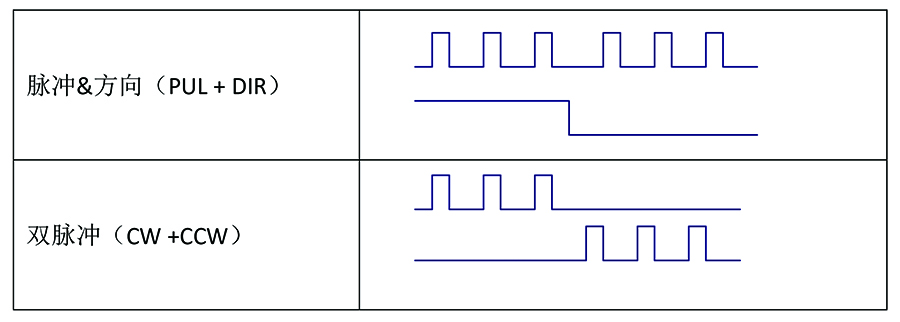

标准T系列驱动信号接口为脉冲形式，T86可接收两种脉冲指令信号。

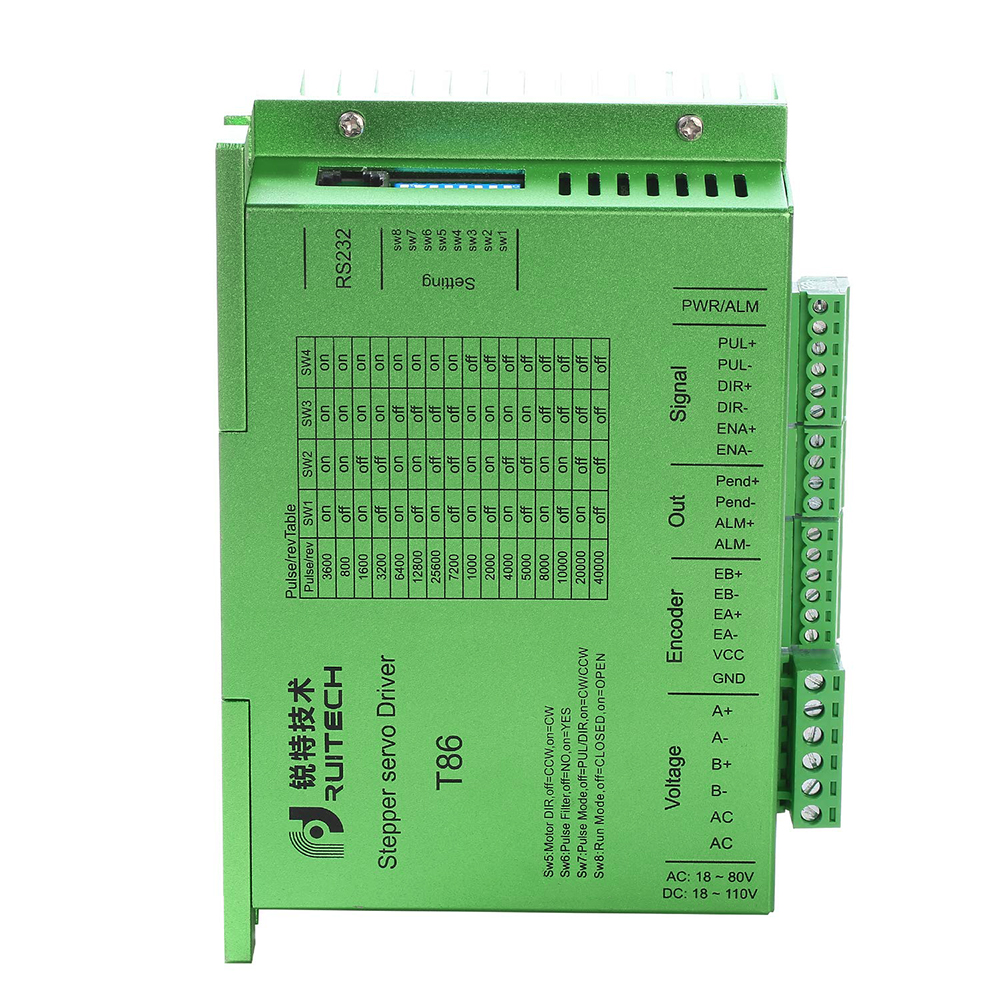

细分档位设定
|
脉冲/圈 |
SW1 |
SW2 |
SW3 |
SW4 |
备注 |
|
3600 |
on |
on |
on |
on |
DIP开关打开到“3600”状态，测试软件可以自由更改其他细分数 |
|
800 |
off |
on |
on |
on |
|
|
1600 |
on |
off |
on |
on |
|
|
3200 |
off |
off |
on |
on |
|
|
6400 |
on |
on |
off |
on |
|
|
12800 |
off |
on |
off |
on |
|
|
25600 |
on |
off |
off |
on |
|
|
7200 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
off |
|
|
40000 |
off |
off |
off |
off |
-
深圳锐特T862.0步进伺服驱动器使用手册 -

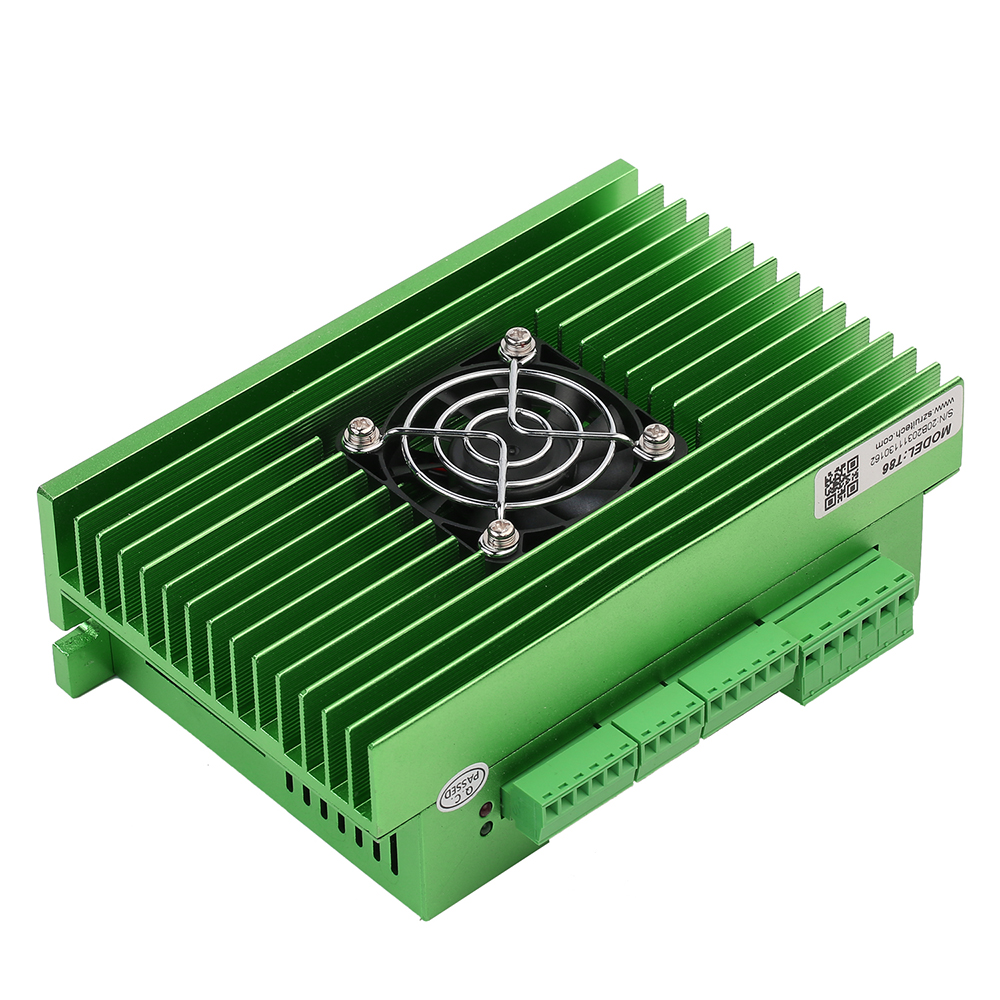

T86_3D
